    Universal Music Theory Library - v0.12.0

    UMT

    jsDelivr Live demo License

    A TypeScript library for music theory computation that works across any tuning system - 12-TET, microtonal, historical temperaments, world music traditions, and post-tonal systems. Zero runtime dependencies. 152 kb compiled bundle (IIFE), plus an ESM build with bundled types.

    Live demo · Developer guide · API docs · Contributing

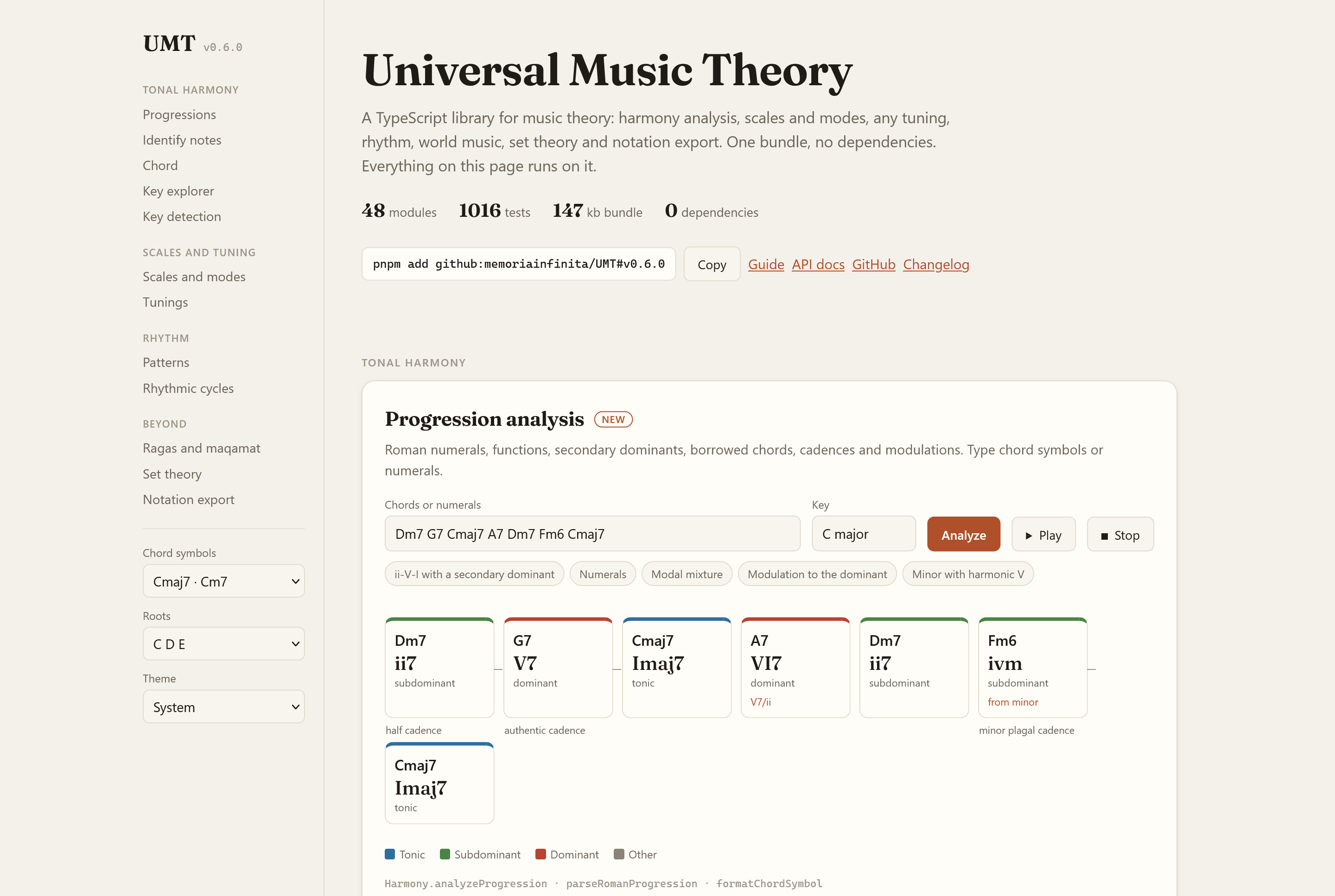

    UMT demo page: navigation by topic and the progression analysis of Dm7 G7 Cmaj7 A7 Dm7 Fm6 Cmaj7 in C major, with Roman numerals coloured by function

    Most music theory libraries are hardcoded to 12-TET. UMT is built around a TuningSystem abstraction: a chord, scale or progression in 31-EDO, just intonation or Werckmeister III is named and analysed as in 12-TET, and sounds at that tuning's pitches. Systems with a theory of their own (maqamat, ragas, Bohlen-Pierce, xenharmonic scales) have their own modules. The guide's Other tunings says what holds where.

    // Same chord, three tuning systems
    const cmaj = parseChordSymbol('C major', TET12);
    const cmaj_ji = parseChordSymbol('C major', PtolemaicJI);
    const cmaj_werck = parseChordSymbol('C major', WerckmeisterIII);

    // Ragas and maqamat with quarter-tone accuracy
    const bhairav = RAGAS['bhairav'];    // aroha, avaroha, vadi, samvadi
    const rast = MAQAMAT['rast'];        // 24-EDO quarter-tone intervals

    // Post-tonal analysis
    const row = new ToneRow([0, 11, 3, 4, 8, 7, 9, 5, 6, 1, 2, 10]);
    const matrix = row.getMatrix();      // 12x12 P/I/R/RI matrix

    // Set theory with Forte catalogue
    SetTheory.getForteNumber([0, 3, 6, 9]);   // "4-28"
    SetTheory.getZRelated([0, 1, 4, 6]);      // Z-related sets

    Releases are git tags (v0.12.0); pin one, since main may change. Breaking changes are listed in CHANGELOG.md.

    Browser - CDN (jsDelivr)

    <script src="https://cdn.jsdelivr.net/gh/memoriainfinita/UMT@v0.12.0/dist/umt.js"></script>
    <script>
      const chord = UMT.parseChordSymbol('Cmaj9');
      console.log(chord.getNotes().map(n => n.name));
    </script>

    Browser - local

    <script src="umt.js"></script>

    pnpm (from GitHub) - ESM with types

    pnpm add github:memoriainfinita/UMT#v0.12.0

    import { parseChordSymbol, TET12, Harmony, SetTheory } from 'universal-music-theory-library';

    Browser - ESM from the CDN

    <script type="module">
      import { parseChordSymbol } from 'https://cdn.jsdelivr.net/gh/memoriainfinita/UMT@v0.12.0/dist/umt.mjs';
    </script>

    Build from source

    pnpm install
    pnpm run build   # dist/umt.js (IIFE), dist/umt.mjs (ESM), dist/umt.d.ts (types)
    Module What it does
    tuning.ts EDO, JustIntonation, CentTuning, NonOctaveTuning - the universal tuning abstraction
    note.ts Pitch as frequency, MIDI, and enharmonic name in any tuning
    interval.ts Interval math in cents and ratios
    parser.ts parseChordSymbol, parseScaleSymbol, parseNote, parseRomanProgression - all tuning-aware
    aliases.ts translateSymbol: chord and scale names in Spanish, French and Italian ('Sib menor' → 'Bb minor')
    dictionaries.ts 100+ chord formulas, 80+ scale patterns
    presets.ts Ready-to-use tuning systems, scales, chords
    utils.ts MIDI conversion, enharmonic spelling, interval naming
    fretboard.ts Chord voicings and scale positions on any fretted instrument, with the degree of each note; CAGED shapes and three-notes-per-string patterns; guitar, bass, ukulele and banjo tunings
    Module What it does
    harmony.ts Voice leading, chord detection, negative harmony, cadences, borrowed chords, modal interchange, Coltrane axis
    chord.ts Voicings (drop2, drop3, quartal, rootless), inversions, tritone substitution, smooth transitions
    scale.ts Modes, diatonic chords, brightness, avoid notes, parent scale navigation
    circle.ts Circle of fifths - key signatures, relatives, neighbors, modal distance
    substitution.ts Chord substitutions (tritone, sus4, deceptive, diatonic)
    progressions.ts 16 named progressions (ii-V-I, Coltrane changes, blues 12, rhythm changes...) and examples of each cadence and of modal mixture, with sources
    form.ts Formal analysis - AABA, ABAB, binary, ternary, through-composed
    upper-structures.ts Upper structure triads, slash chord analysis, chord-scale completeness
    key-detection.ts Correlation key finding with five key profiles (Krumhansl-Kessler, Aarden-Essen, Bellman-Budge, Temperley-Kostka-Payne, simple)
    neo-riemannian.ts P, L, R transformations in any tuning
    figured-bass.ts Figured bass parsing and realization
    spelling.ts Pitches spelled in a key (harmonic chromatic scale), chord tones by interval
    voicing.ts Voicing analysis: inversion, close/open position, drop 2/3/2+4, doubled, omitted and added notes
    scale-finder.ts Every scale of the dictionary, on every root, that holds a set of notes, ranked
    chord-names.ts Chord symbol styles (Cmaj7 / CΔ7 / CM7), solfège roots; chord, scale, cadence and substitution names in English and Spanish

    Post-tonal

    Module What it does
    set-theory.ts Normal/prime form, interval vector, Forte catalogue (223 set classes), Z-relations, Tn/TnI
    twelve-tone.ts Tone rows, P/I/R/RI forms, 12x12 matrix, all-interval and combinatorial detection
    counterpoint.ts Species counterpoint checker, Canon
    schenker.ts Basic Schenkerian reduction
    melody.ts Contour analysis, motif detection
    Module What it does
    ragas.ts 10 Hindustani ragas - aroha, avaroha, vadi, samvadi, time, description
    maqamat.ts 8 Arabic maqamat in 24-EDO quarter-tone intervals
    solfege.ts Fixed-do and movable-do solfege; movable do in Latin syllables (si) or tonic sol-fa (ti) with chromatic syllables
    hexachord.ts Guidonian hexachord system
    Module What it does
    rhythm.ts Euclidean rhythms, polyrhythm, metric modulation, isorhythm
    clave-patterns.ts 10 clave presets (son, rumba, bossa nova, tresillo, habanera...)
    rhythmic-cycles.ts Hindustani and Carnatic talas, flamenco compás (bulerías, soleá, seguiriya), aksak meters
    Module What it does
    scala.ts Scala .scl file parser
    tonnetz.ts Tonnetz pitch space - position and navigation
    mos.ts Moment of Symmetry scales, MOS families, comma pumps
    xen.ts Otonal/utonal series, neutral intervals
    spectral.ts Roughness (Plomp-Levelt), sensory consonance, overtone series
    temperament-analysis.ts Temperament error analysis, EDO comparison, JI mapping
    voice-leading-geometry.ts OPTIC equivalences, efficient voice leading geometry (Tymoczko)
    Module What it does
    abc-bridge.ts Export scales, chords, and streams to ABC notation
    lilypond-bridge.ts Export scales, chords, and streams to LilyPond
    musicxml-bridge.ts Export scales, chords, and streams to MusicXML
    notation-layout.ts Shared by the exporters: spelling, key signatures, measures, ties and triplets

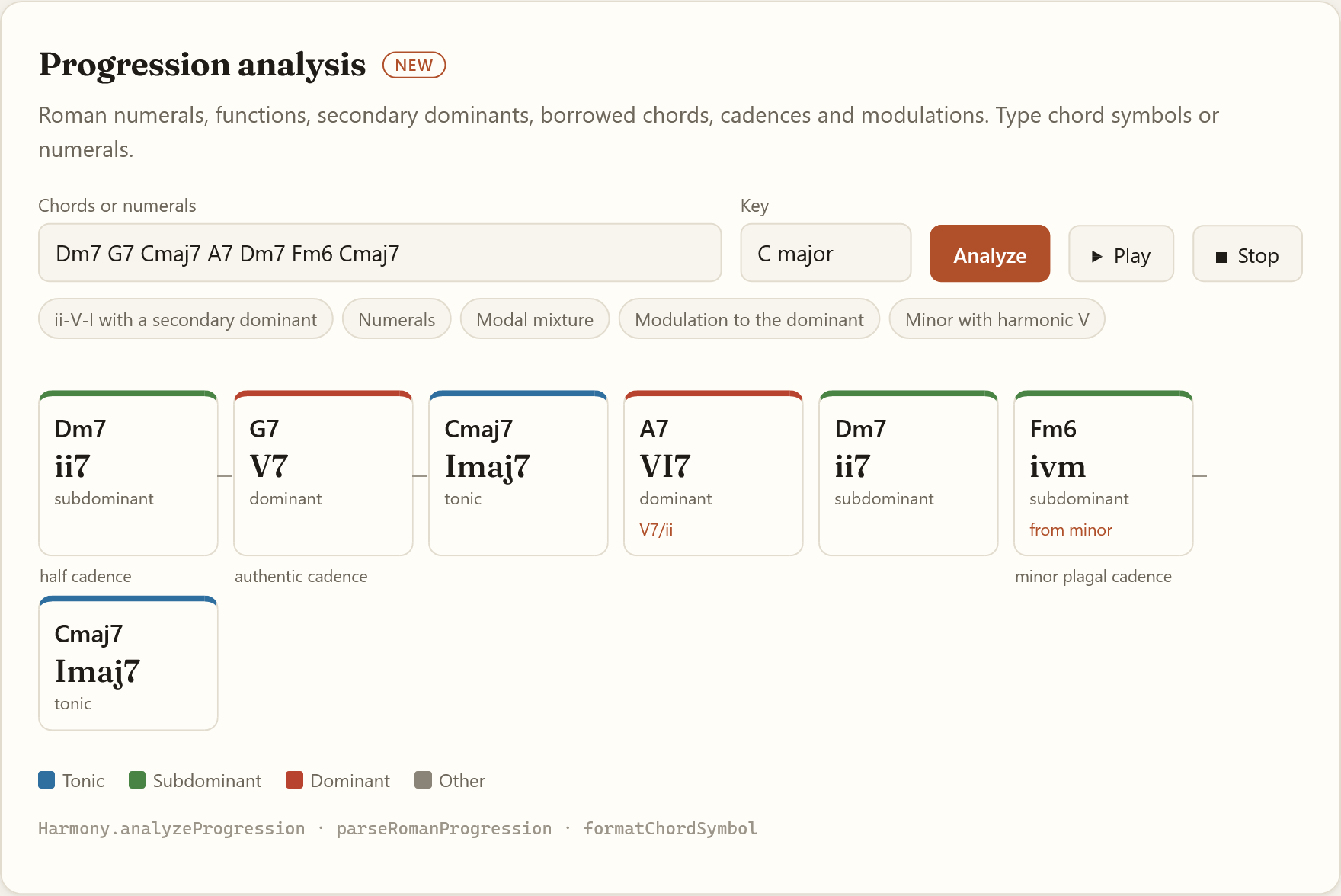

    Progression analysis in the demo: Dm7 G7 Cmaj7 A7 Dm7 Fm6 Cmaj7 in C major, with numerals, functions, the secondary dominant V7/ii, Fm6 borrowed from minor, and the cadences

    import { parseChordSymbol, Harmony, getSubstitutions } from './lib/music-theory';

    const chords = ['Dm7', 'G7', 'Cmaj7', 'A7', 'Dm7', 'Fm6', 'Cmaj7'].map(s => parseChordSymbol(s));
    const { analysis } = Harmony.analyzeProgression(chords, 'C major');
    analysis.map(a => a.roman);
    // ['ii7', 'V7', 'Imaj7', 'VI7', 'ii7', 'ivm', 'Imaj7']
    analysis[3].secondaryTarget;   // 'V7/ii'
    analysis[5].borrowedFrom;      // 'minor'
    analysis[1].cadenceWithNext;   // 'Authentic Cadence (V -> I)'

    const g7 = parseChordSymbol('G7');
    Harmony.getSuggestedScales(g7)[0];
    // { scale: 'G mixolydian', hint: 'standard V' }
    getSubstitutions(g7, 'C major').map(s => `${s.chord.name} (${s.type})`);
    // ['Db7 (tritone)', 'Gsus4 (sus4)', 'Am (deceptive)', 'Bm7b5 (diatonic)']

    Harmony.getColtraneAxis('C major');
    // { root: 'C', majorThirds: ['C', 'E', 'Ab'] }

    Names for an interface in English or Spanish:

    import { formatChordSymbol, chordLongName, scaleName, cadenceName, substitutionTypeName } from './lib/music-theory';

    formatChordSymbol('F#m7b5', { style: 'symbols', roots: 'solfege' });  // 'Fa#ø7'
    chordLongName('F#m7b5', 'es');                                        // 'Fa sostenido semidisminuido'
    scaleName('G mixolydian', 'es');                                      // 'Sol mixolidio'
    scaleName(analysis[5].borrowedFrom, 'es');                            // 'menor'
    cadenceName(analysis[1].cadenceWithNext, 'es');                       // 'Cadencia auténtica (V -> I)'
    cadenceName(analysis[1].cadenceWithNext, 'es', { short: true });      // 'Auténtica'
    substitutionTypeName('tritone', 'es');                                // 'tritonal'

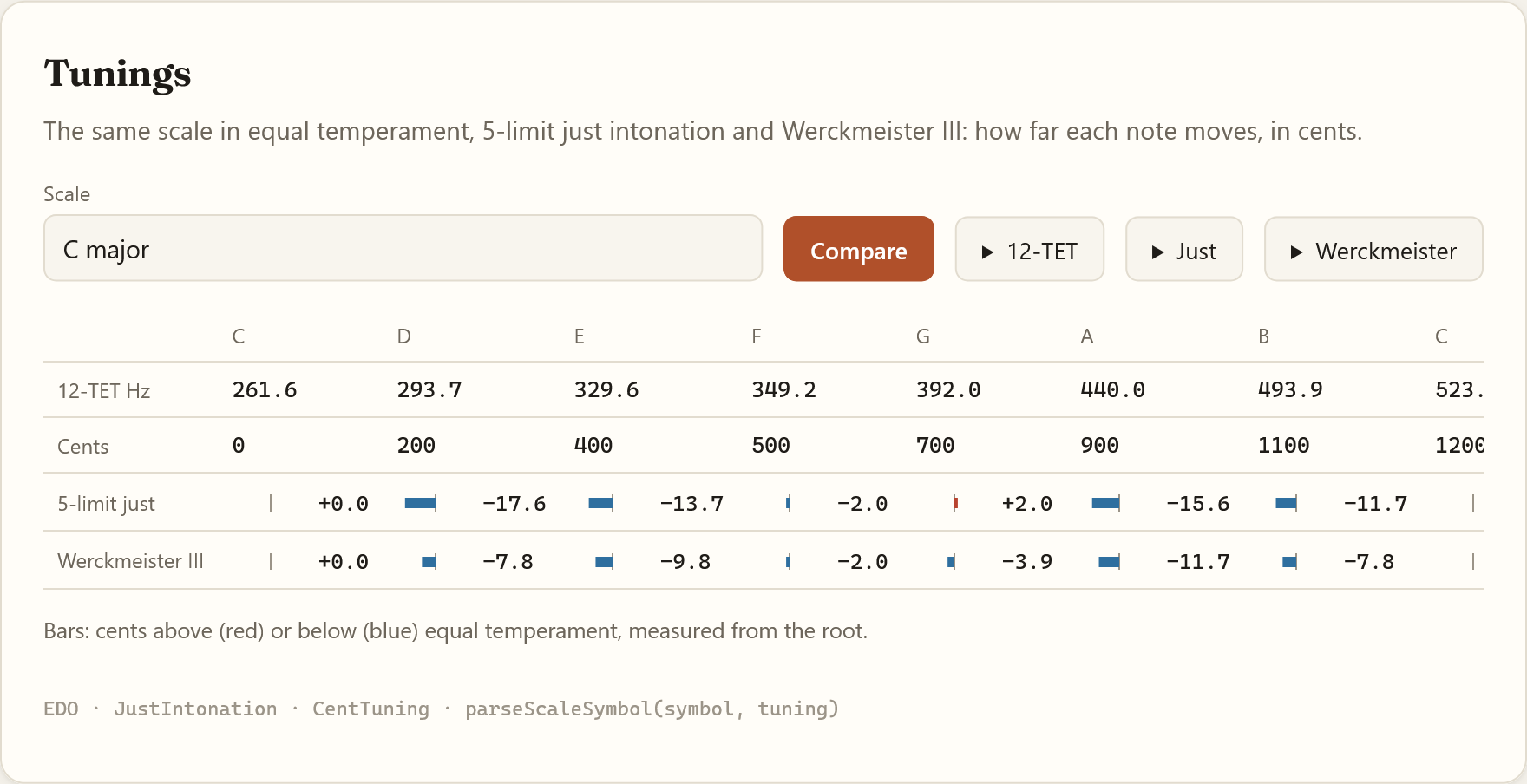

    Tunings in the demo: C major in 12-TET, with the deviation of 5-limit just intonation and Werckmeister III in cents

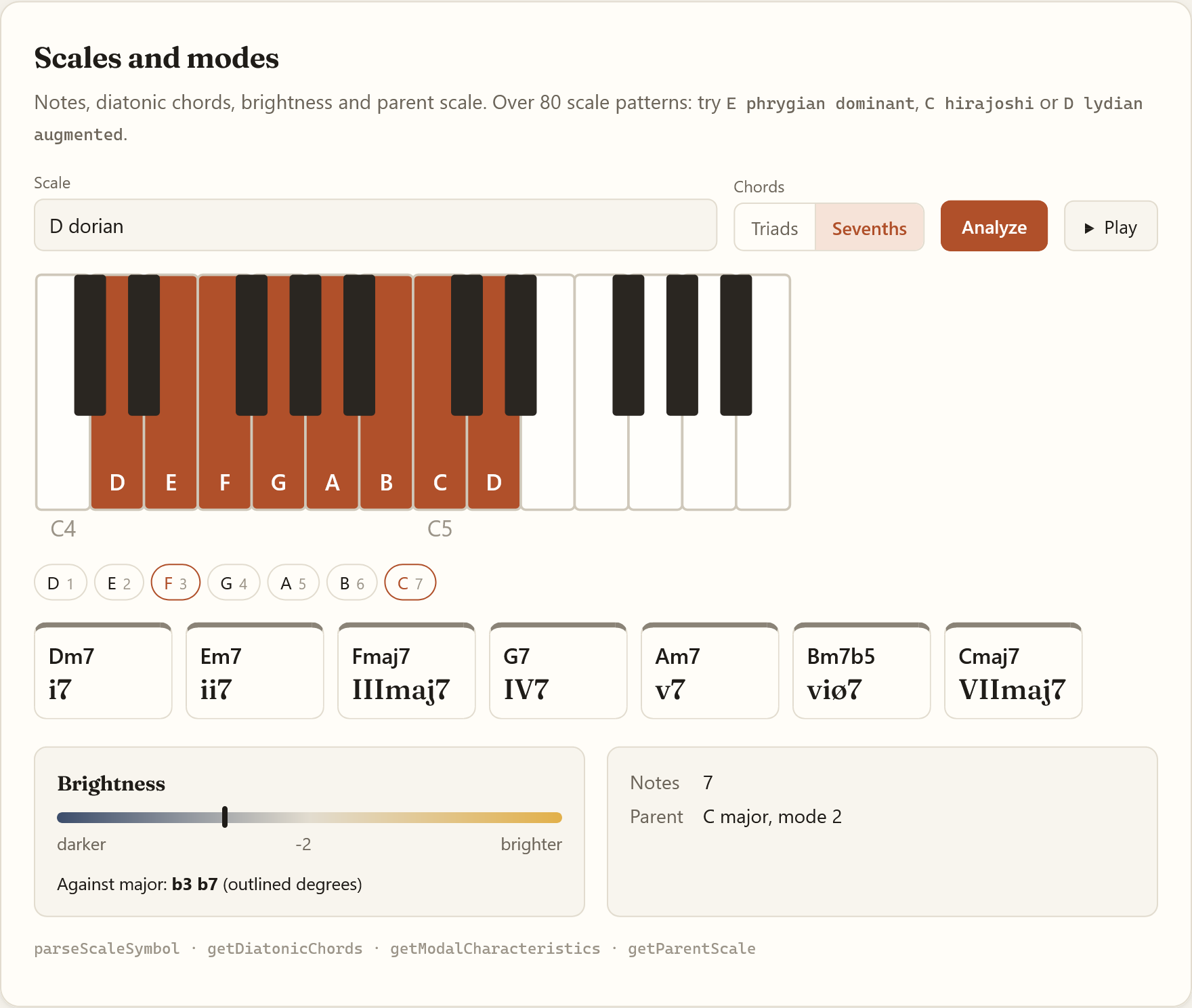

    Scales and modes in the demo: D dorian on a keyboard, with its diatonic seventh chords, brightness and parent scale

    import { parseScaleSymbol } from './lib/music-theory';

    const scale = parseScaleSymbol('D dorian');

    scale.getDiatonicChords('seventh');
    // [Dm7, Em7, Fmaj7, G7, Am7, Bm7b5, Cmaj7]

    const modal = scale.getModalCharacteristics();
    // { brightness: -2, characteristicIntervals: ['b3', 'b7'] (against major), parentModeDegree: 2, ... }

    scale.getParentScale();   // C major
    scale.getRelativeMode('lydian');  // F lydian

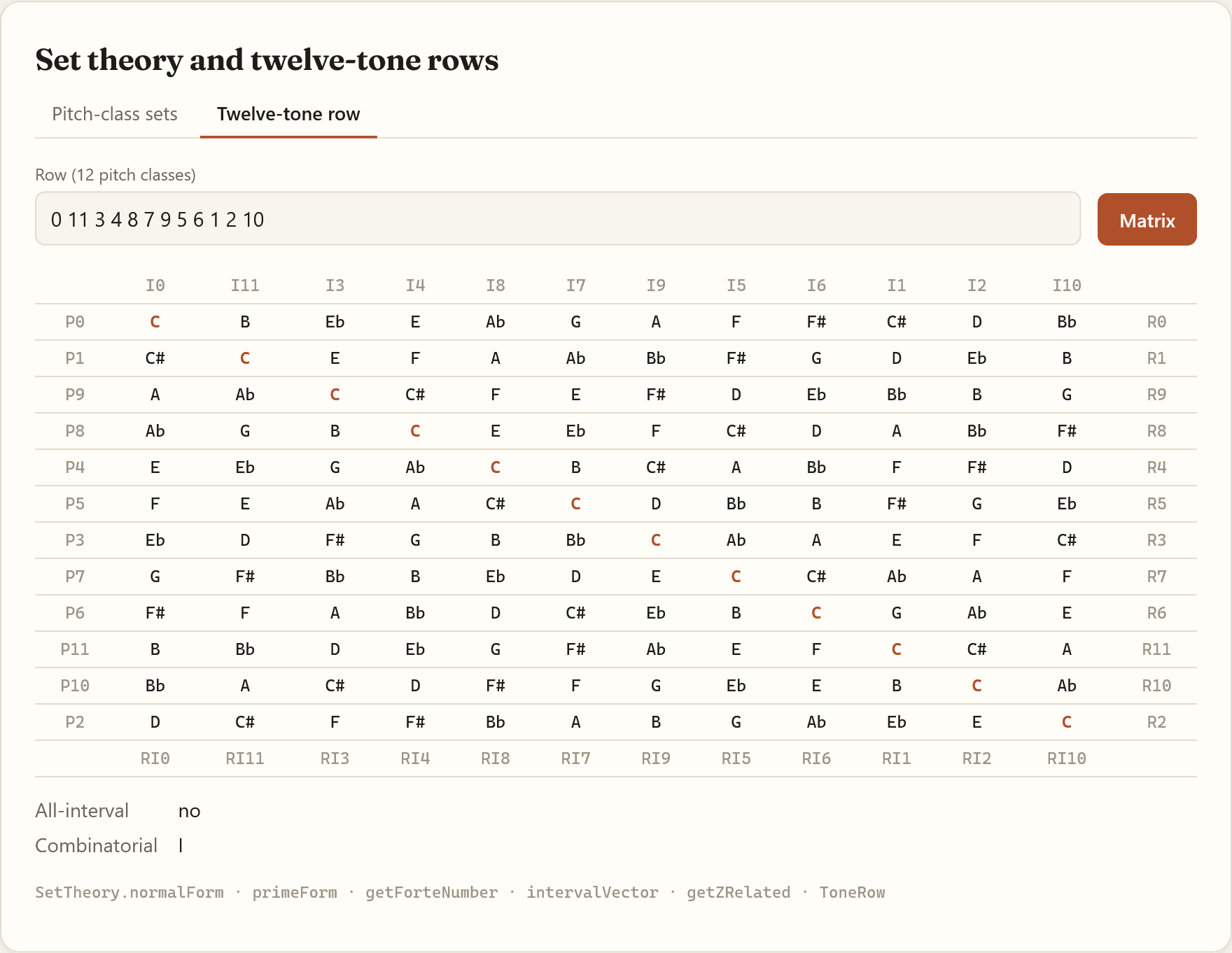

    Twelve-tone row in the demo: the 12x12 matrix of a row, with P forms on the rows and I forms on the columns

    import { ToneRow } from './lib/music-theory';

    const row = new ToneRow([0, 11, 3, 4, 8, 7, 9, 5, 6, 1, 2, 10]);

    row.P(0);   // prime form
    row.I(0);   // inversion
    row.R();    // retrograde
    row.RI(0);  // retrograde inversion

    row.getMatrix();        // 12x12 transformation matrix
    row.isAllInterval();    // true if all 11 intervals are distinct
    row.isCombinatorial();  // combinatoriality check
    row.getHexachords();    // [first6, last6]

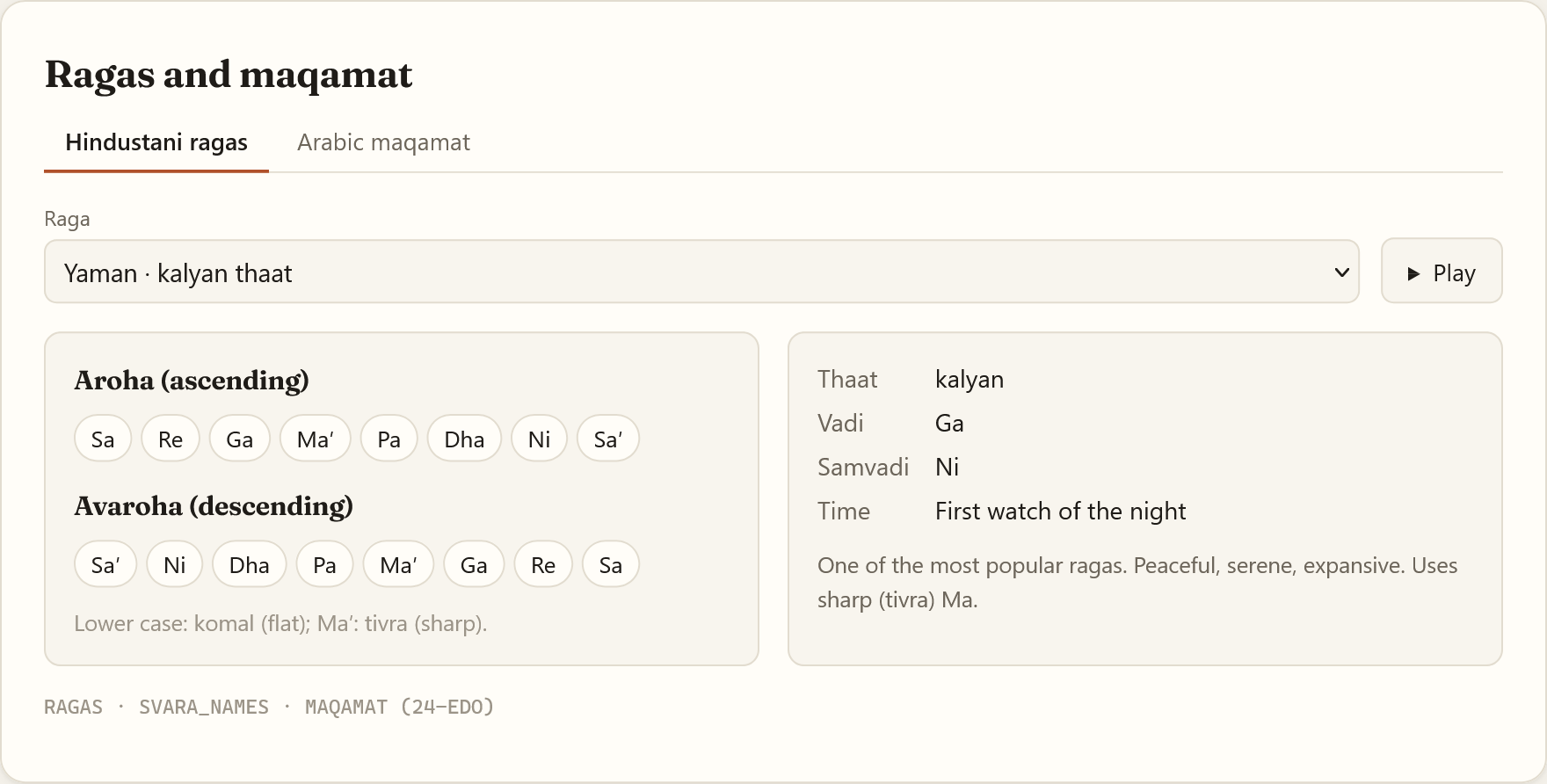

    Ragas in the demo: raga Yaman with its aroha and avaroha in svaras, vadi, samvadi and time of performance

    import { RAGAS, MAQAMAT, CLAVE_PATTERNS } from './lib/music-theory';

    // Hindustani raga
    const bhairav = RAGAS['bhairav'];
    bhairav.aroha;      // ascending scale in semitones
    bhairav.vadi;       // primary note, a svara number (SVARA_NAMES[6] = 'Dha')
    bhairav.time;       // 'Early morning'

    // Arabic maqam (24-EDO quarter-tones)
    const rast = MAQAMAT['rast'];
    rast.notes;         // interval pattern in quarter-tones
    rast.ajnas;         // constituent tetrachords

    // Clave rhythm
    const clave = CLAVE_PATTERNS['son-3-2'];
    clave.steps;        // boolean[16] - onset pattern

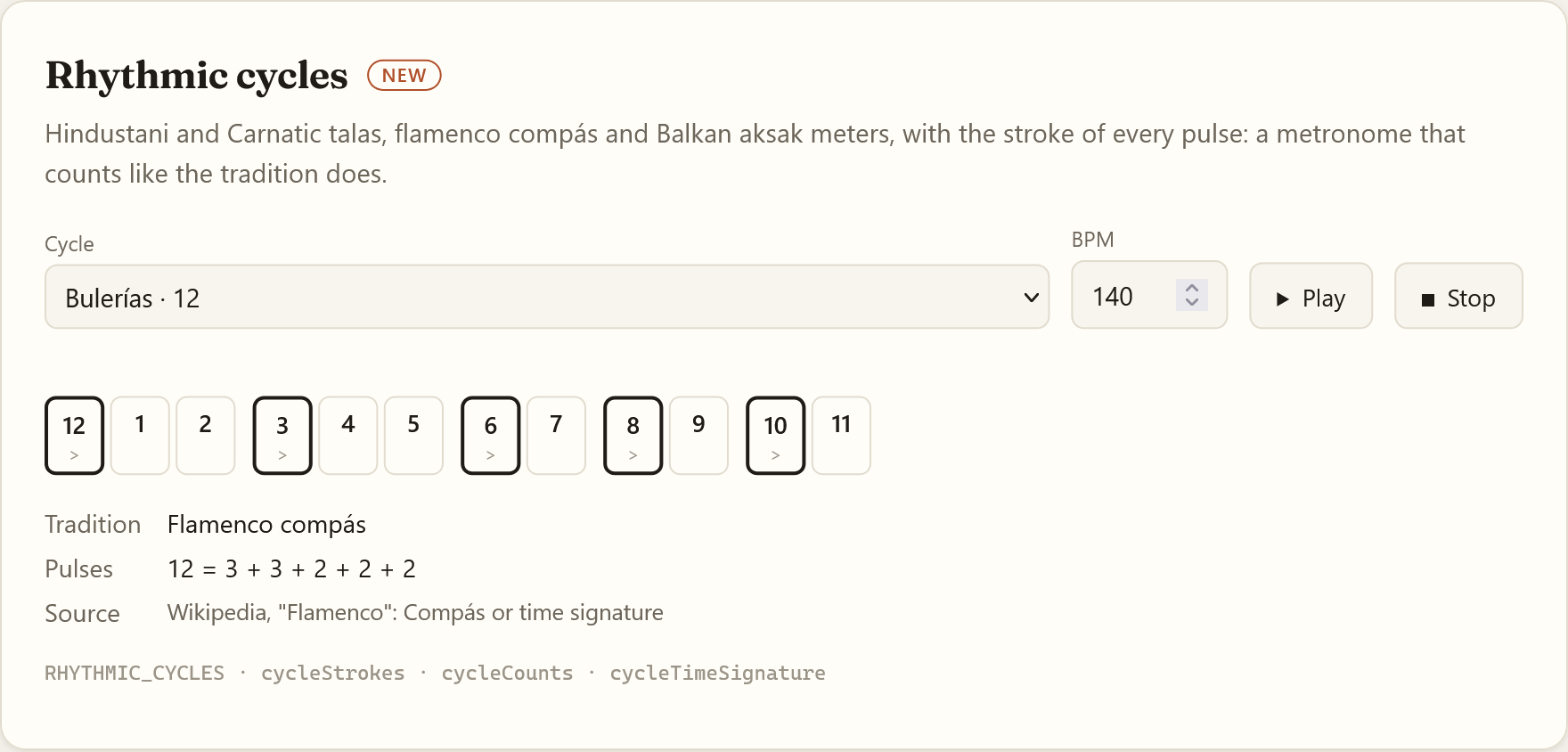

    Rhythmic cycles in the demo: the bulerías compás counted from 12, with accents on 12, 3, 6, 8 and 10

    import { RHYTHMIC_CYCLES, cycleCounts, cycleStrokes, Polyrhythm } from './lib/music-theory';

    const bulerias = RHYTHMIC_CYCLES.bulerias;
    cycleCounts(bulerias);    // [12, 1, 2, 3, ... 11]
    cycleStrokes(bulerias);   // ['accent', 'beat', 'beat', 'accent', ...]
    cycleStrokes(RHYTHMIC_CYCLES.teental)[8];   // 'khali'

    Polyrhythm.euclidean(5, 8);   // [true, false, true, true, false, true, true, false]

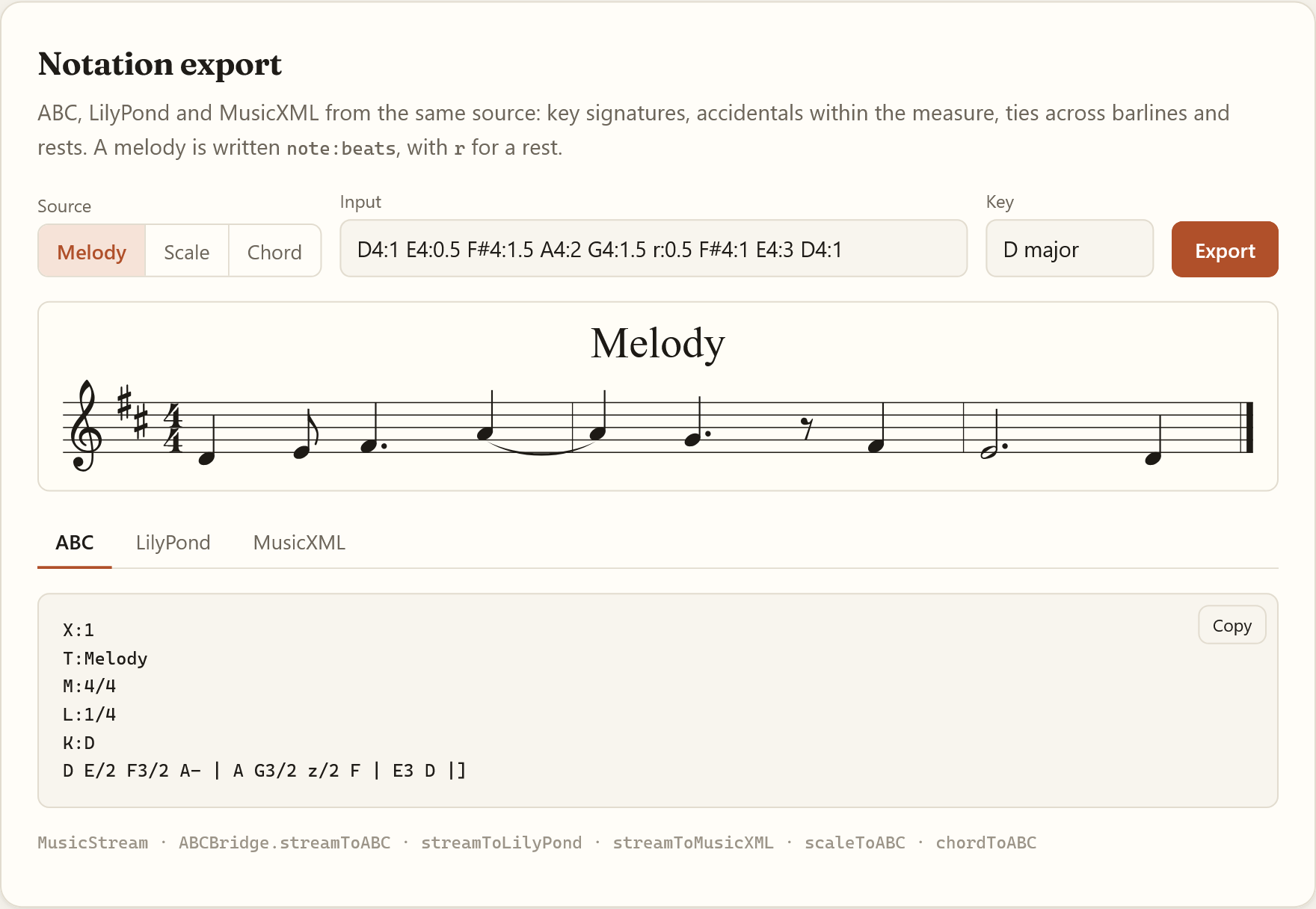

    Notation export in the demo: a melody in D major rendered as a staff, with a tie across the barline and a rest, and its ABC source

    import { parseScaleSymbol, ABCBridge, scaleToLilyPond, scaleToMusicXML } from './lib/music-theory';

    const scale = parseScaleSymbol('D dorian');

    ABCBridge.scaleToABC(scale, 1, 'D dorian');   // ABC notation, accidentals against K:Ddor
    scaleToLilyPond(scale);            // LilyPond source
    scaleToMusicXML(scale);            // MusicXML document

    Coordinate system: all pitch positions are steps from A4 = 0. A4 = 440 Hz = step 0. C4 = -9 in 12-TET.

    Tuning abstraction: parseChordSymbol, parseScaleSymbol, and parseRomanProgression accept an optional TuningSystem parameter (default: TET12). Interval values from the dictionaries are mapped to the target tuning via tuning.getStepFromStandard().

    Enharmonic spelling: the library uses circle-of-fifths logic to choose flats vs. sharps - not a hardcoded list. preferFlats is stored per Note and propagated through all transformations. Interval-based overrides ensure m3, m7 etc. are always spelled as flat-side intervals regardless of key. Heptatonic scales are spelled one letter per degree, so F# major contains E# and D harmonic minor contains C#; their diatonic chords take the same letters (E#dim).

    pnpm run test:unit    # 1362 unit tests via vitest: one file per module, plus the tuning conformance battery
    pnpm run typecheck    # TypeScript type checking

    GPL-3.0. Created for people, not for corporate profit. Any software using this library must also remain free and open. See LICENSE.

    Developed by @memoriainfinita with the assistance of Claude (Anthropic): Opus 4.8, Sonnet 4.6 and Fable 5.
